16 Channels DSP with HD Player, ES9038PRO DAC + AK5578 ADC

Description

• •16 Channels DSP with HD Player
  •8 Analog Inputs (RCA + High Level), 5 Digital Inputs, 16 Analog Outputs
  •Modular device: High-end solution with 18 independent PCB
  •Player & DSP: All-in-one dual core processor
  •DSP Processor: OMAP L-138 – 2 x 456 MHz, 32 Bit (till 64-bit/IEEE double precision)
  •DSP Processor Point: Fixed & Floating
  •DSP Sampling Rate: 96 KHz
  •Player power: 456 Mhz – Arm 9 32 Bit. Read till 192 KHz/24 bit
  •File Audio formats: WAV, AIF, AIFF, FLAC, ALAC, AAC, MP3, Direct.: File or Artist/Album or Title
  •USB memory stick support: Formatted FAT32 with limited memory space (2 TB)
  •ADC Processor (standard): AK5558, 32 Bit, 784 KHz, 115 dB DNR
  •ADC Processor (option B): AK5578, 32 Bit, 784 KHz, 121 dB DNR

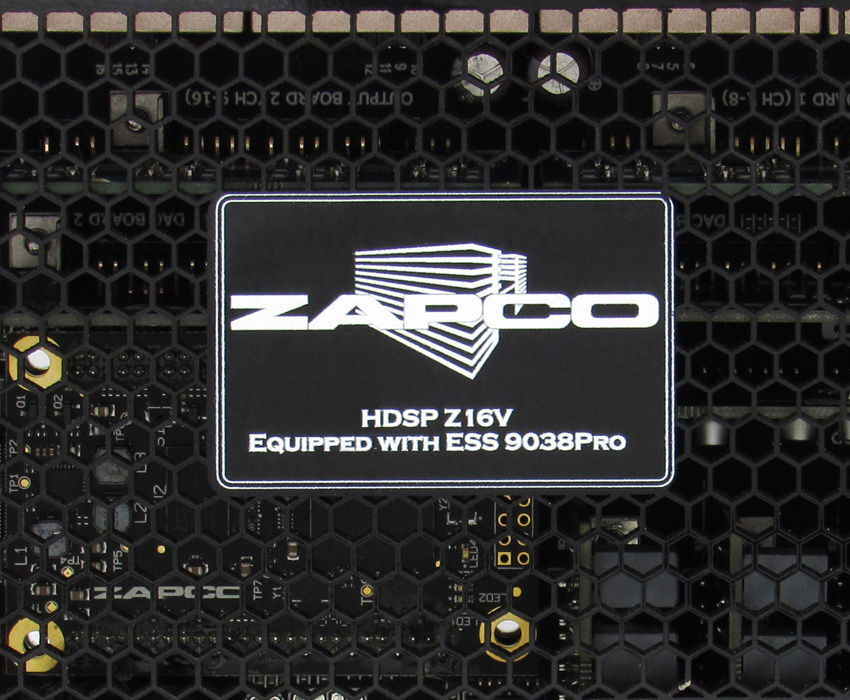

  •DAC Processor (standard): ES9038PRO, 32 Bit, 784 KHz, 132 dB DNR
  •Frequency response: 5Hz @ 45 KHz
  •THD+N: 0,0008 (Digital Input), 0,001 (Analog Input) 1V Out
  •S/N Device Floor Noise: -125 dB (from 20 Hz to 20 KHz), -135 dB (from 150 Hz to 20 KHz), -140 dB (average from 80 Hz to 20 KHz)
  •S/N Ratio (Digital Inputs): from 115 to 120 dB A
  •S/N Ratio (Analog Inputs): from 109 to 115 dB A
  •Crosstalk: > 110 dB (from 300 Hz to 0.9 KHz)
  •Crosstalk: average 115 dB (from 300 Hz to 0.9 KHz)

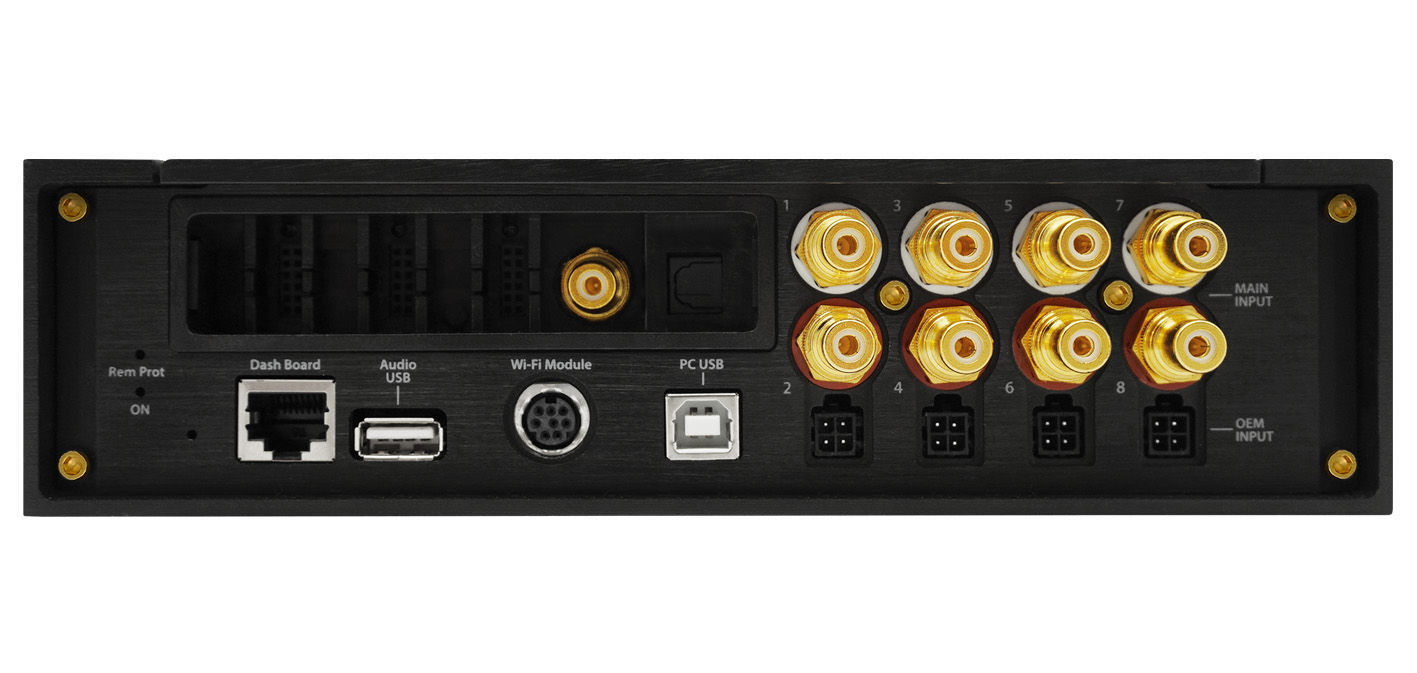

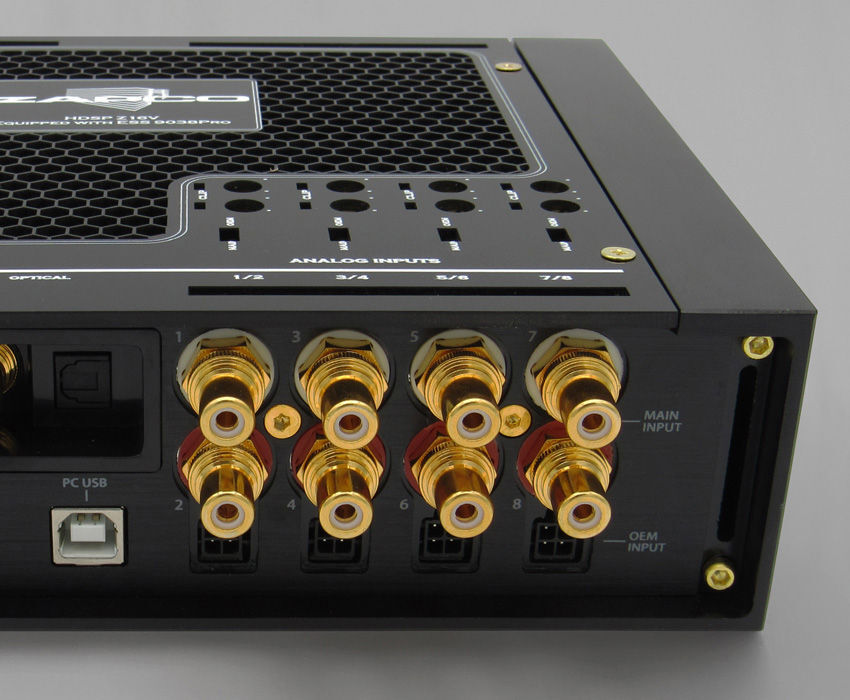

  •Analog Inputs: 6/8 x RCA Low Level 1/5 Volt, 8 x High Level 4/20 Volt
  •Digital Inputs: Optical: 24 Bit – 192 KHz, SPDIF: 24 Bit – 192 KHz, 3 x i2S: 24 Bit – 192 KHz

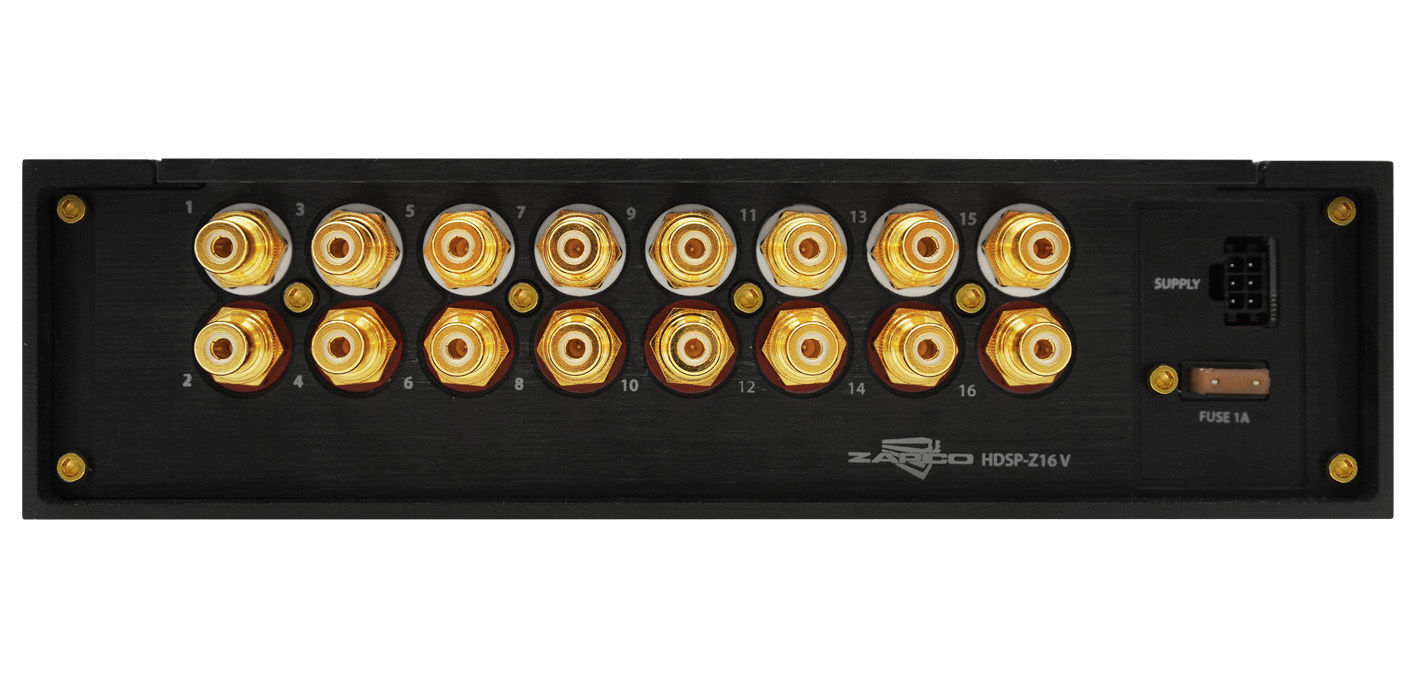

  •Analog Outputs: 16 x RCA, 4 Volt (5 KOhm), Impedance: 100 Ohm

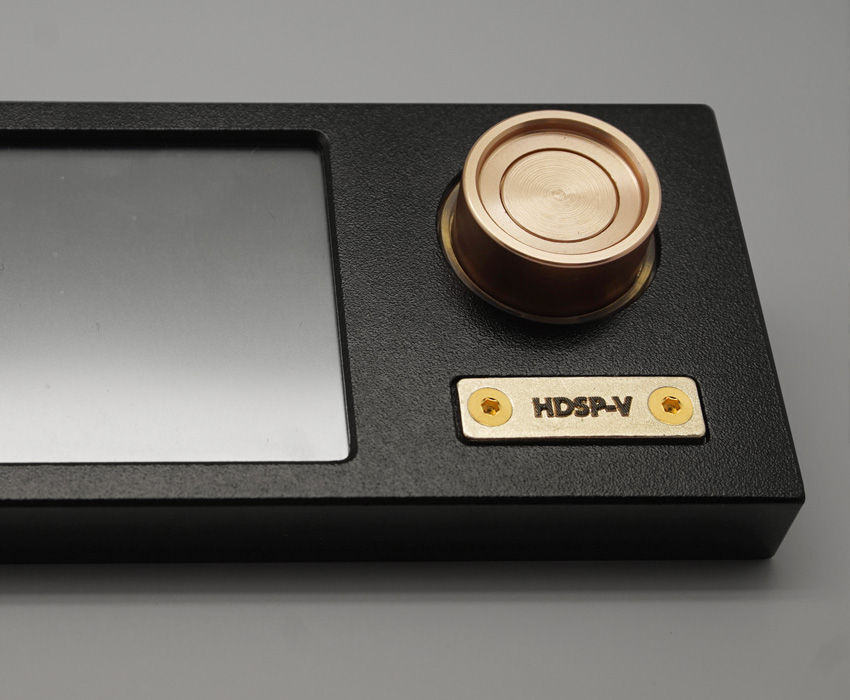

  •Dash Board: 3″ Touch Screen, 10 Preset
  •Dash Board Control: Volume/Balance/Fader/Tone
  •Wireless Control: Wi-Fi External Module (incl.)
  •BT Streaming: External APTX HD Module (opt.)
  •Tuning: Easy and Expert, “Double Front”
  •I/O Setup: 2ch, 4ch, 6ch, 8ch, OEM SUM, AUX
  •Digital Input Mode: HD, Optical, Coax, i2S 1, 2, 3
  •EQ Parametric 30 / 6 poles
  •XO Filters: Linkwitz, Butterw., Bessel, Tsecheb.
  •Phase Filter: All channels 1Hz/1 Degree step
  •VSEQ Filter: 50-200 Hz – 1 Hz step
  •Power Supply: Operating: 6-16 Volt, Current Draw: 750 mA/14.4 V, Fuse: 1A
  •Stop-Start ignition system support
  •Main unit overall dimensions (mm): 217(L) x 164(W) x 57(H)
  •Dash Board dim. (mm): 111(L) x 16(W) x 49(H)

PLEASE NOTE THIS IS A CUSTOM ORDER UNIT PLEASE ALLOWS 4-5 WEEKS FOR DELIVERY TO AUSTRALIA

The eight channel A, G and GA units are:
– HDSP-Z16 V AD-8A – 8 channel DSP with HD player. Standard AK4458 DAC and AK5558 ADC chip-set. Optional AK4490 DAC or ES9038PRO DAC and AK5578 ADC chip-set upgrade.
– HDSP-Z16 V AD-8G – 8 channel DSP with HD player. ESS9038PRO DAC and standard AK5558 ADC chip-set. Optional AK5578 ADC chip-set upgrade.
– HDSP-Z16 V AD-8GA – 8 channel DSP with HD player. ESS9038PRO DAC and AK5578 ADC chip-set.

The sixteen channel A, G and GA units are:
– HDSP-Z16 V AD-16A – 16 channel DSP with HD player. Standard AK4458 DAC and AK5558 ADC chip-set. Optional AK4490 DAC or ES9038PRO DAC and AK5578 ADC chip-set upgrade.
– HDSP-Z16 V AD-16G – 16 channel DSP with HD player. ESS9038PRO DAC and standard AK5558 ADC chip-set. Optional AK5578 ADC chip-set upgrade.
– HDSP-Z16 V AD-16GA – 16 channel DSP with HD player. ESS9038PRO DAC and AK5578 ADC chip-set.
