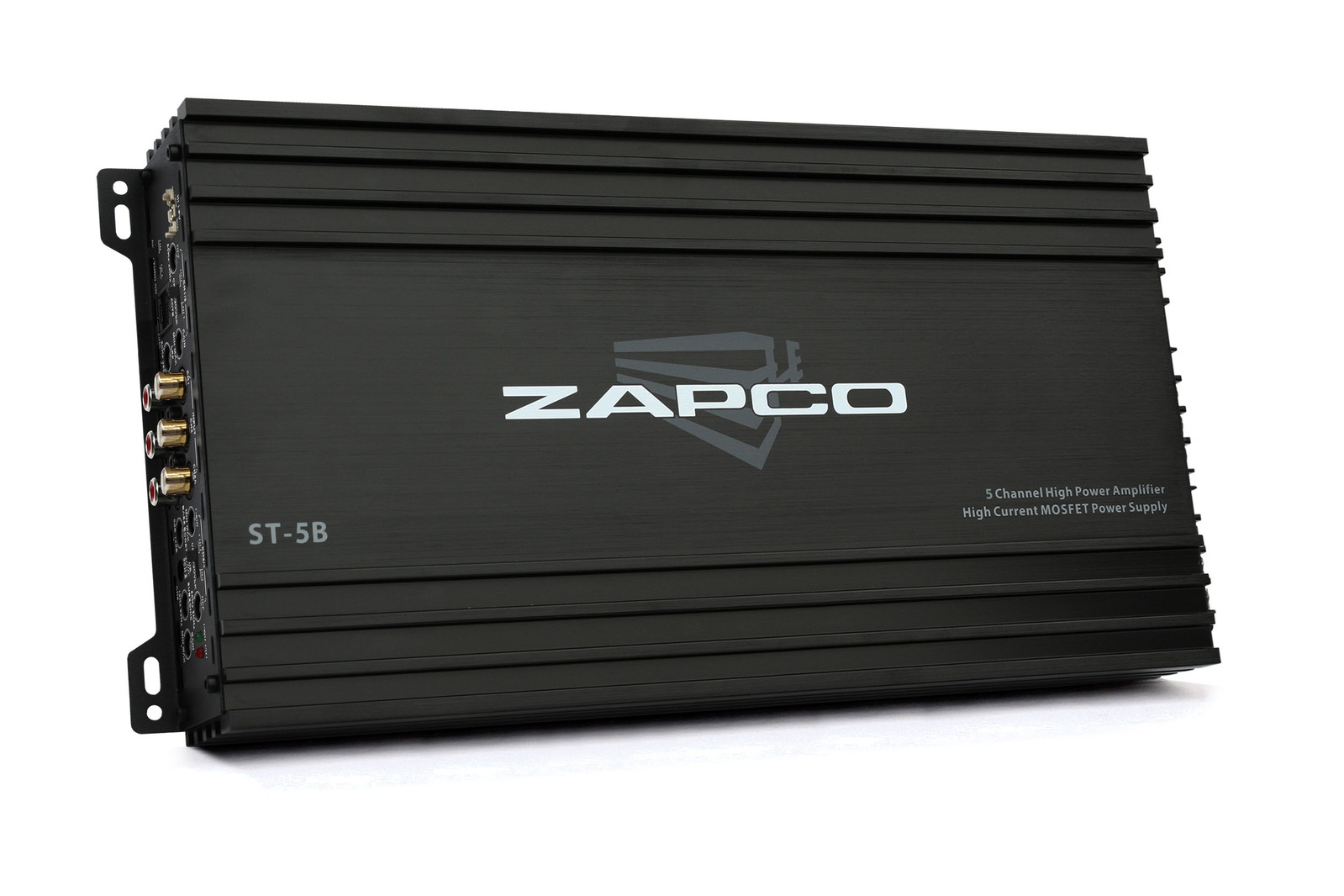

5ch Amp 4 x 70rms 1 x 400rms

Description

Features and Functions

• 5-Channel, Class-AB Full Range Amplifier

• Stable into 4 ohms bridged or 2 ohms stereo load

• MOSFET power supply

• RCA and OEM speaker level input

• Variable Inputs Gain Control

• Variable FULL / LP / HP Electronic Crossover

• Variable Bass Boost

Specifications

• Power @ 4Ω: 4 x 70 + 1 x 250 watts

• Power @ 2Ω: 4 x 100 + 1 x 400 watts

• Power @ 4Ω Bridged: 2 x 180 + 1 x 400 (2Ω)

• THD @ Rated Power  < 0.2%

• Signal to Noise Ratio > 90dB

• Channel separation > 45dB

• Frequency Response 10Hz to 30,000Hz ±1dB

• Input Sensitivity .25v to 5v

• Dimensions in mm: 182(W) x 52(H) x 351(L) Overall: 182(W) x 52(H) x 381(L)
