6.5″ (165 mm) Two-way Component Speaker System

Description

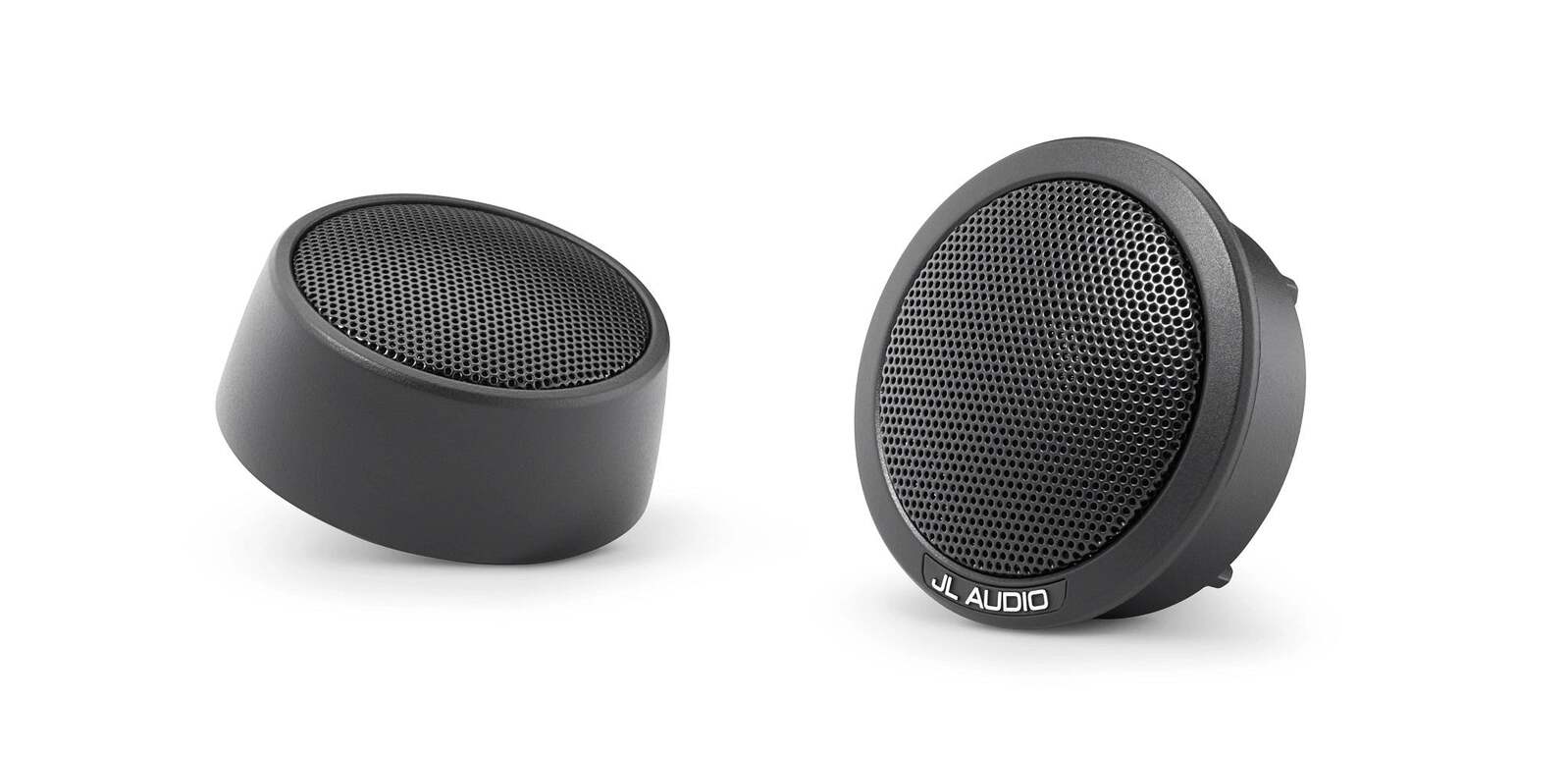

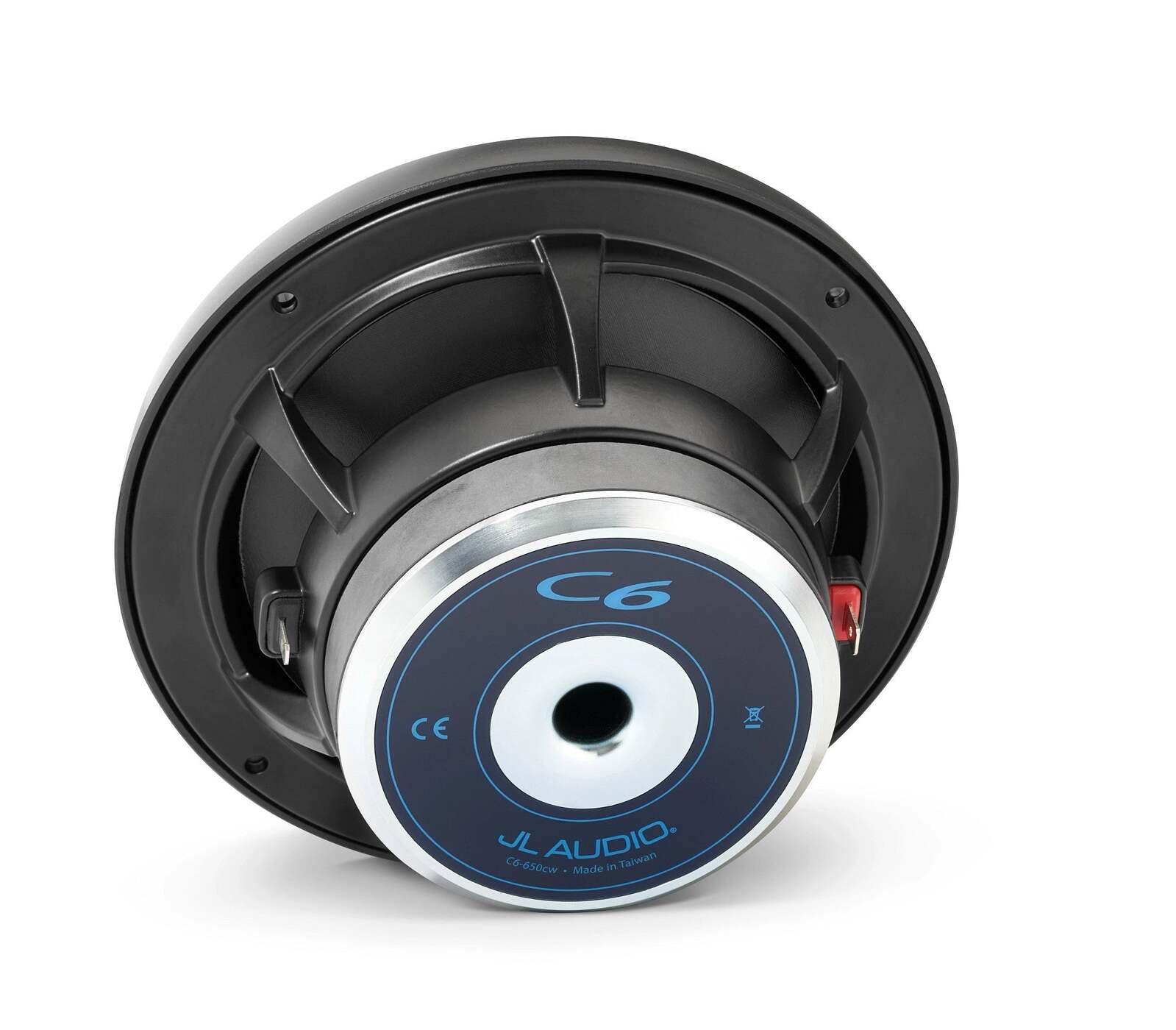

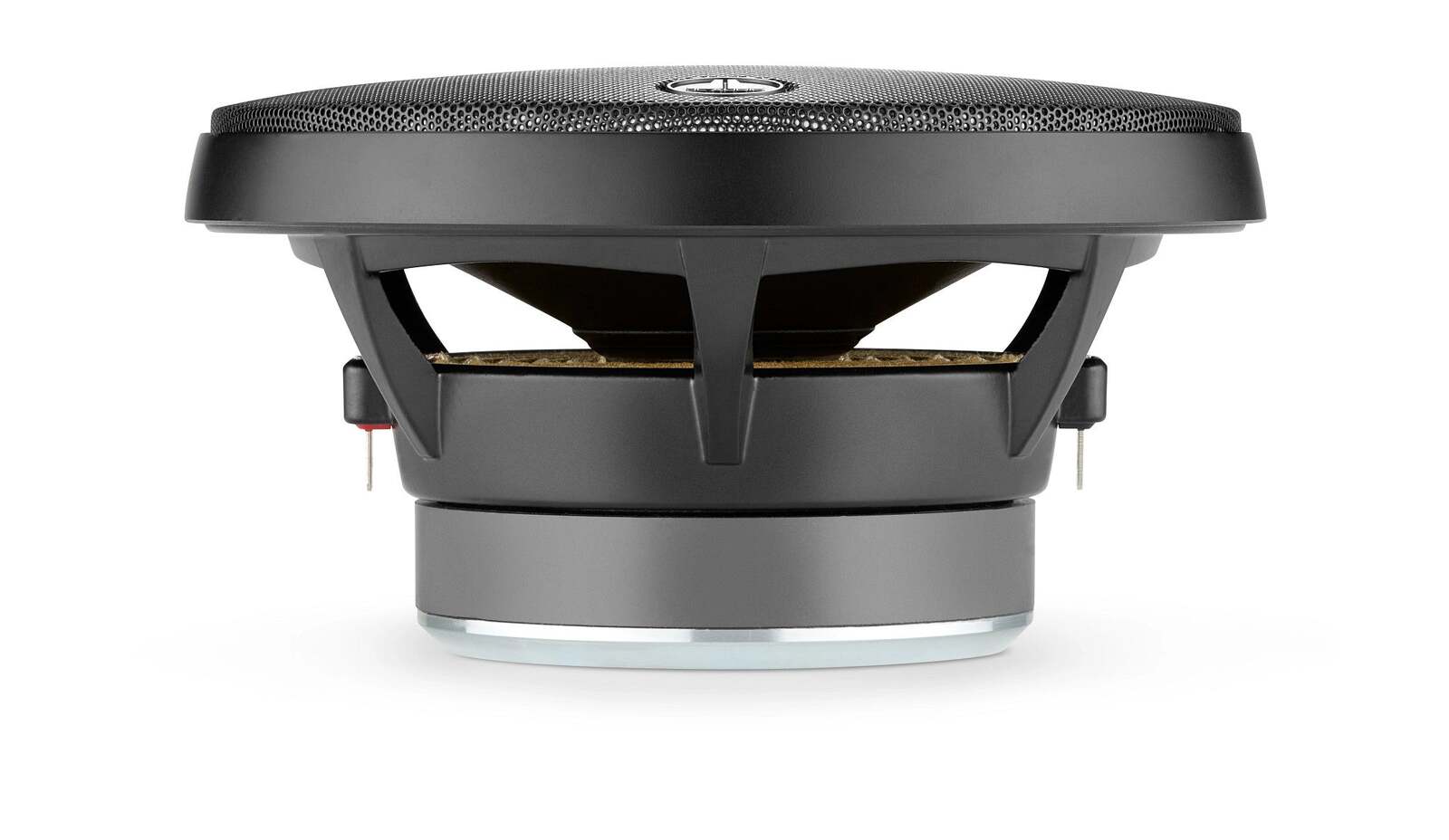

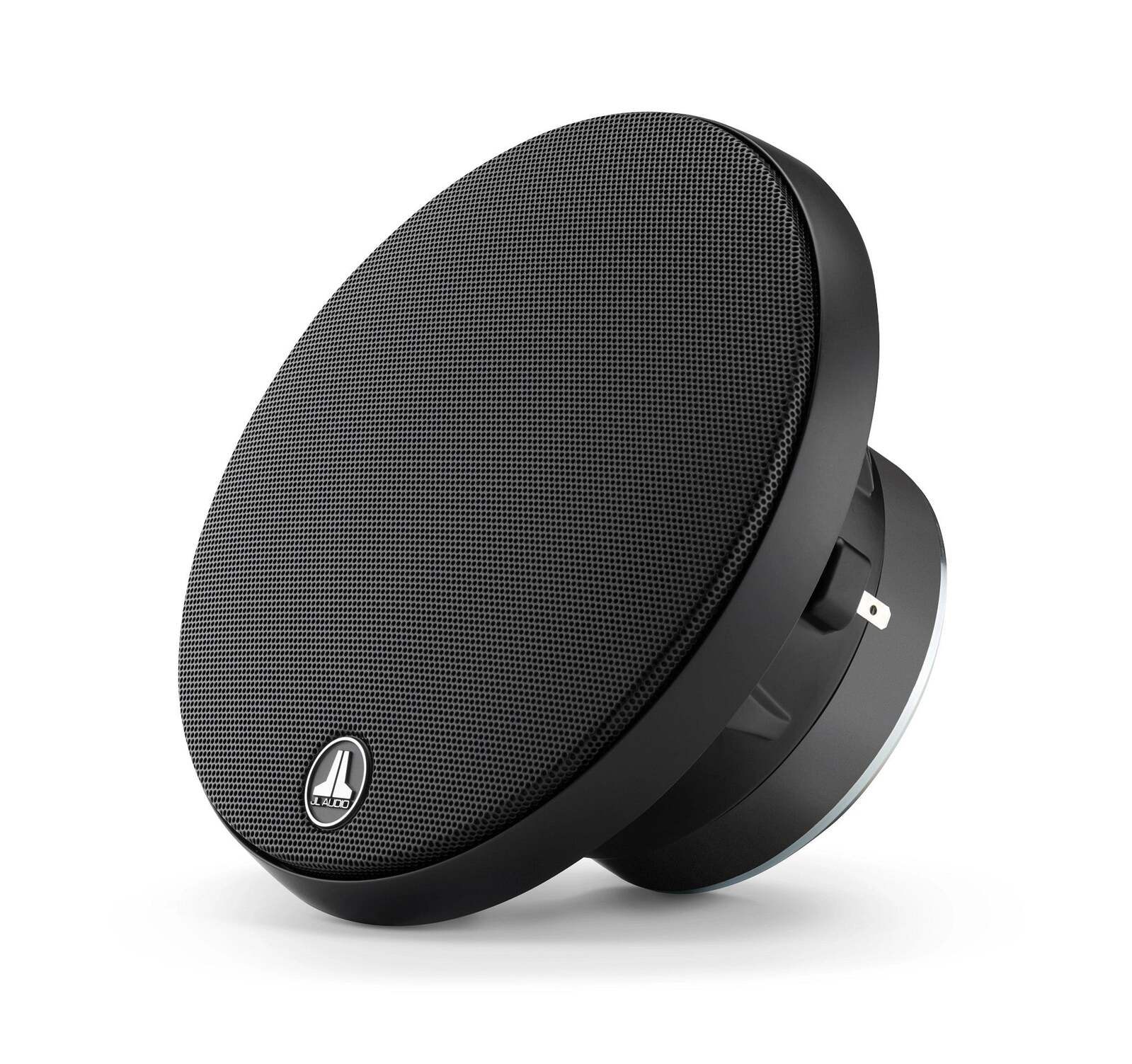

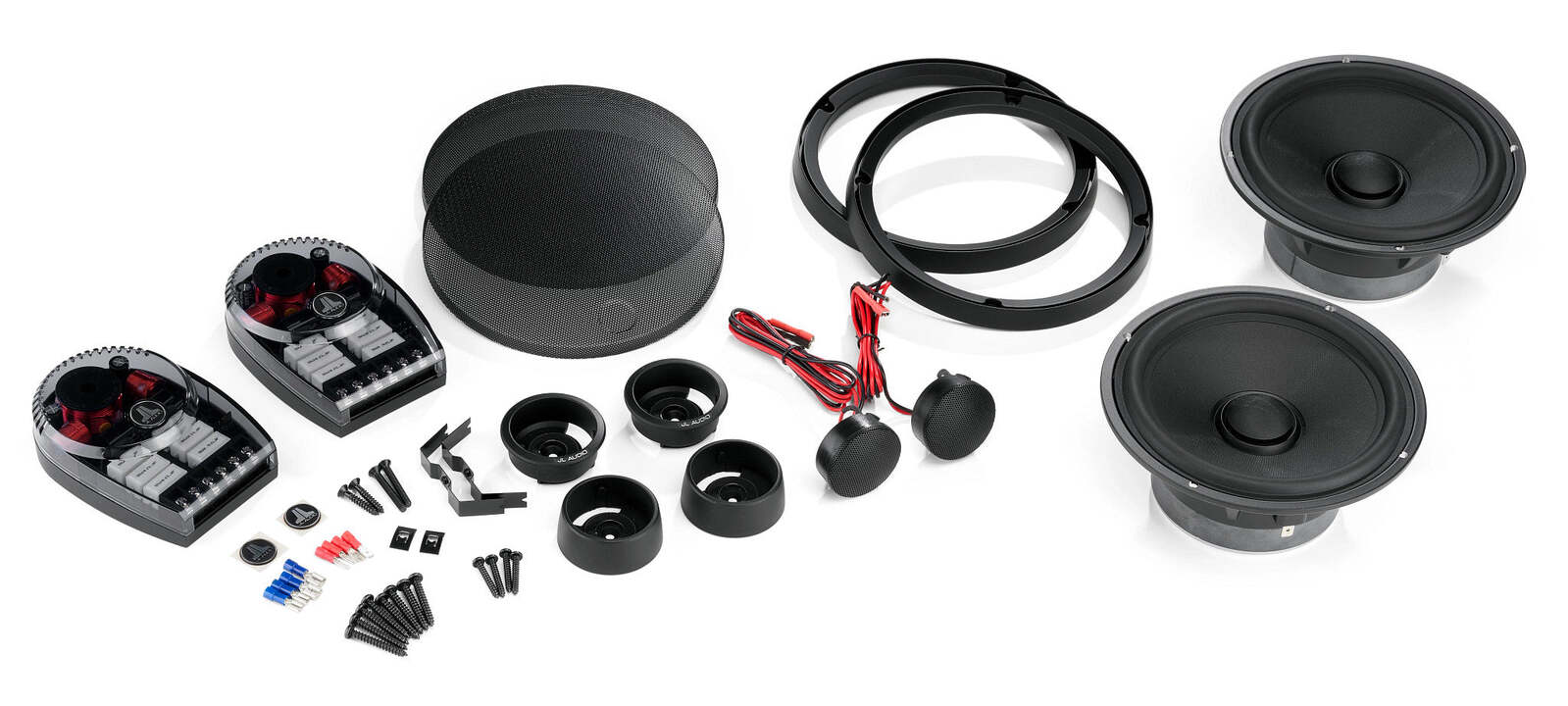

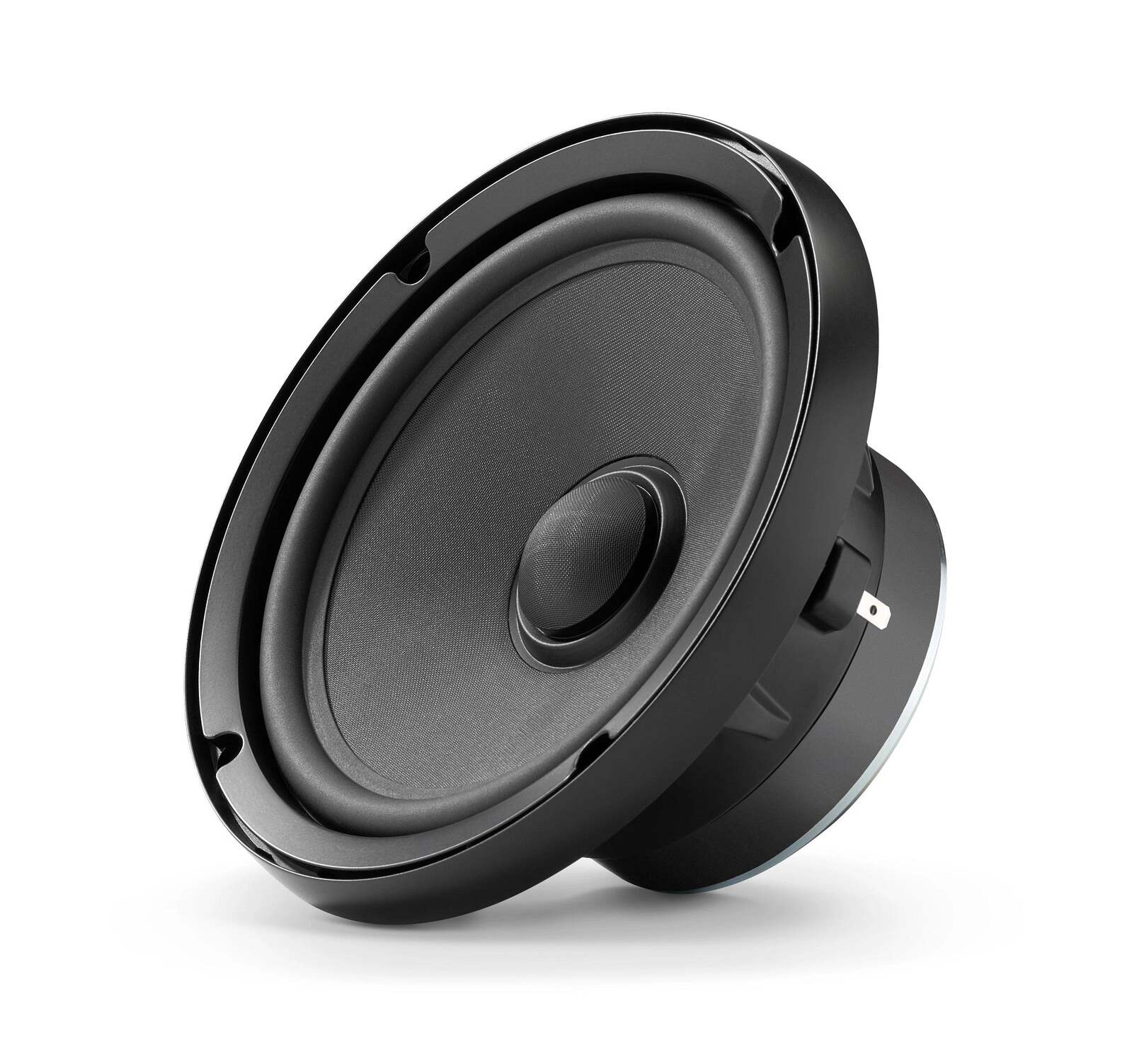

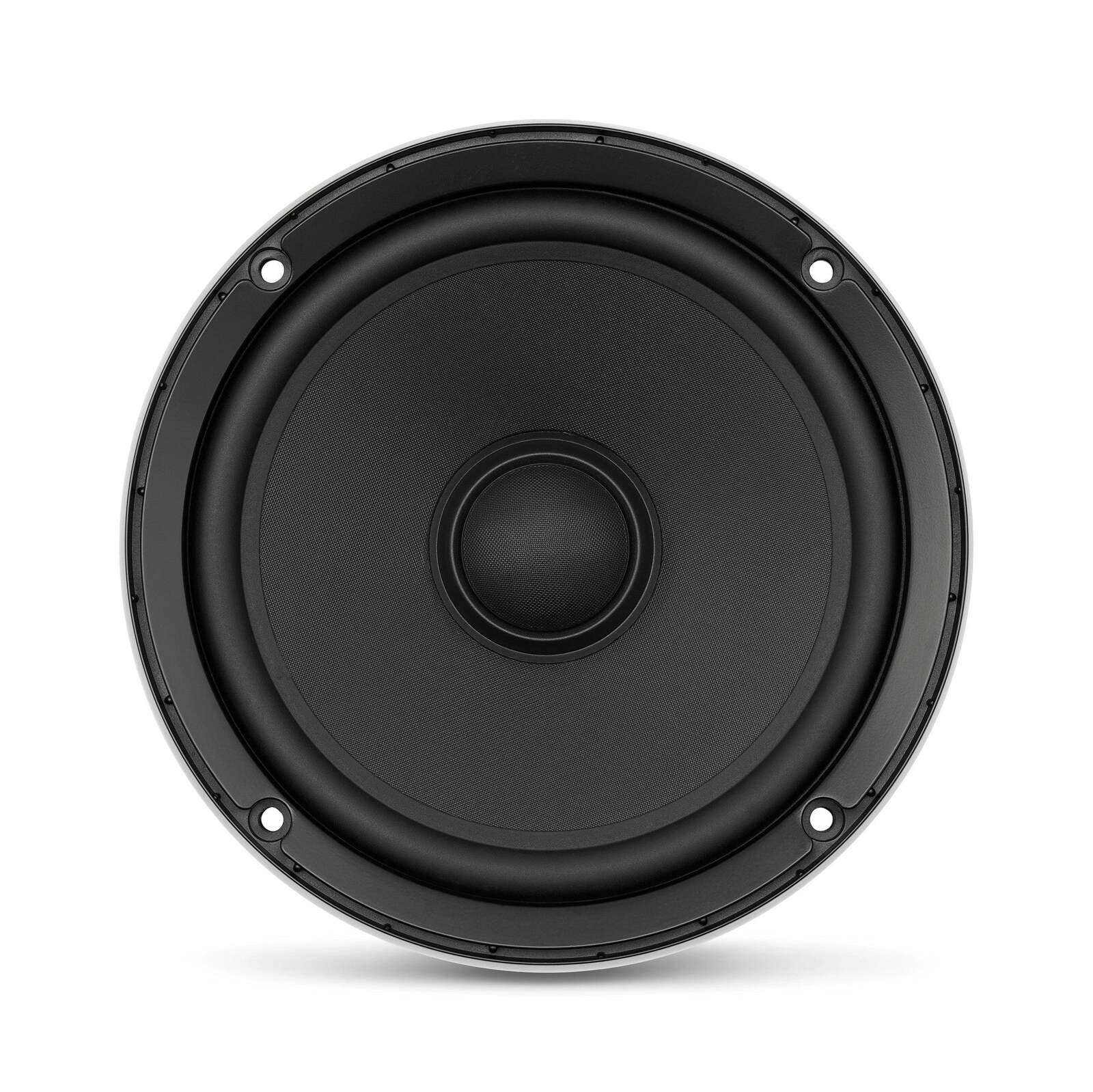

Two-way Component System: 6.5″ (165 mm) Woofer, 1″ (25 mm) Silk Dome Tweeter Born from shared technologies used in our flagship C7 speakers, the C6-650 component system combines the smoothness and transparency of a premium silk dome tweeter with a top-flight component woofer to create a loudspeaker system with exceptional refinement and dynamic capability. Benefiting from vast woofer design experience and advanced modeling systems of JL Audio, the 6.5″ (165 mm) C6 component woofers feature purpose-engineered, cast alloy frames outfitted with our Elevated Frame Cooling technology. A DMA-optimized, forged and machined motor system generates outstanding midbass impact with ultra-low distortion. The 1″ (25 mm) C6 component tweeters feature edge-driven pure silk dome diaphragms for smooth high-frequency performance with remarkable off-axis response and damping. Neodymium motors and ferrofluid cooling provide high-magnetic flux and improved reliability with extended response from a very compact motor system. Surface- and flush-mount fixtures are included to fit a wide variety of installation applications. Premium passive crossover networks are included with each C6-650 component system. Featuring four levels of tweeter adjustment, these outboard filter networks are equipped with premium polyester film and electrolytic capacitors as well as low-loss air-core inductors — all accessible beneath a protective, polycarbonate cover. Each C6 passive crossover also includes an advanced electronic tweeter protection circuit designed to minimize the possibility of tweeter failure. C6 Woofer Features: • Forged and machined motor plates with DMA-optimized geometries to create linear motor force under power, leading to outstanding midbass impact, linearity and low distortion • Large diameter, linear profile, flat spider for linear compliance and outstanding excursion capability • Center cap designed to optimize the high-frequency response of the woofer for seamless transition to a tweeter’s response • Oversized voice coil for extended power handling capability, minimizing thermal compression and distortion at higher listening levels • Cast alloy frame with our Elevated Frame Cooling feature • Includes fine mesh grilles C6 Tweeter Features: • Edge-driven pure silk dome design delivers smooth high-frequency performance, with excellent off-axis response and damping • Neodymium motor delivers high magnetic flux from a compact motor design • Ferrofluid cooling and damping improves reliability and response smoothness • Includes surface- and flush-mount fixtures Woofer grilles are included, each consisting of a black grille tray and a fine steel mesh grille with an electroformed JL Audio badge logo. Speakers are sold as a pair.
