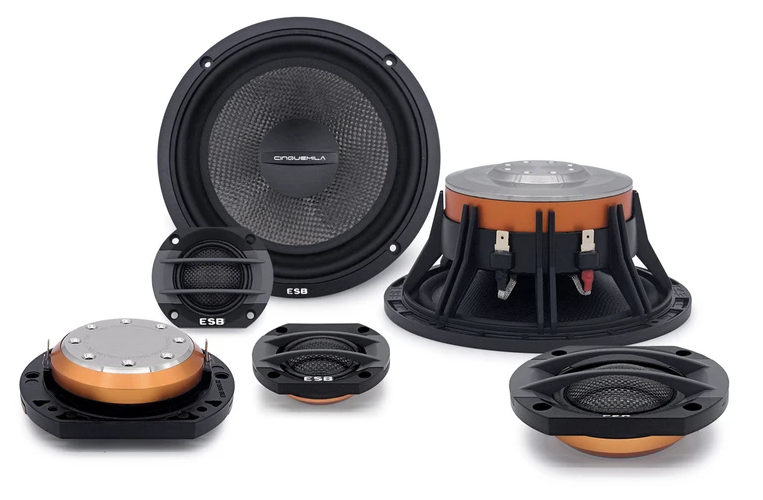

ESB AUDIO 3-WAY SPEAKER SYSTEM

Description

• 5.165

  6.5″/165 mm Mid-Woofer

• Carbon fiber cone

  TWS® rubber surround

  25 mm Copper and aluminum VC

  Y35 oversized magnet

  Aluminum former

  ABS housing

  Conex® progressive spider

  Motor metal part CNC machined

  Computer optimized design

  –

  Nominal Impedance: 4 Ohm

  Nominal Power: 160 Watt

  Transient Power: 320 Watt

  Freq. Response: 50 Hz ~ 3.5 KHz

  Sensitivity: 92 dB 1W/1m

5.050

2″/50 mm Dome Midrange

​

50 mm aluminum voice coil

High-grade neodymium magnet

Carbon fiber dome

Ferrofluid cooling and damping

Acoustic resistance Qts control

Computer optimized design

Motor metal parts CNC machined

Under-dome dB Cloth® damping material

–

Nominal Impedance: 4 Ohm

Nominal Power Handling: 120 Watt

Transient Power: 240 Watt

Freq. Response: 500 Hz ~ 6 KHz

Sensitivity: 91 dB 1W/1m

5.028

1.1″/28 mm Dome Tweeter

​

28 mm aluminum voice coil

High-grade neodymium magnet

Carbon fiber dome

Ferrofluid cooling and damping

Acoustic resistance Qts control

Computer optimized design

Motor metal parts CNC machined

Under-dome dB Cloth® damping material

–

Nominal Impedance: 4 Ohm

Nominal Power Handling: 110 Watt

Transient Power: 220 Watt

Freq. Response: 900 Hz ~ 25 KHz

Sensitivity: 91 dB 1W/1m
