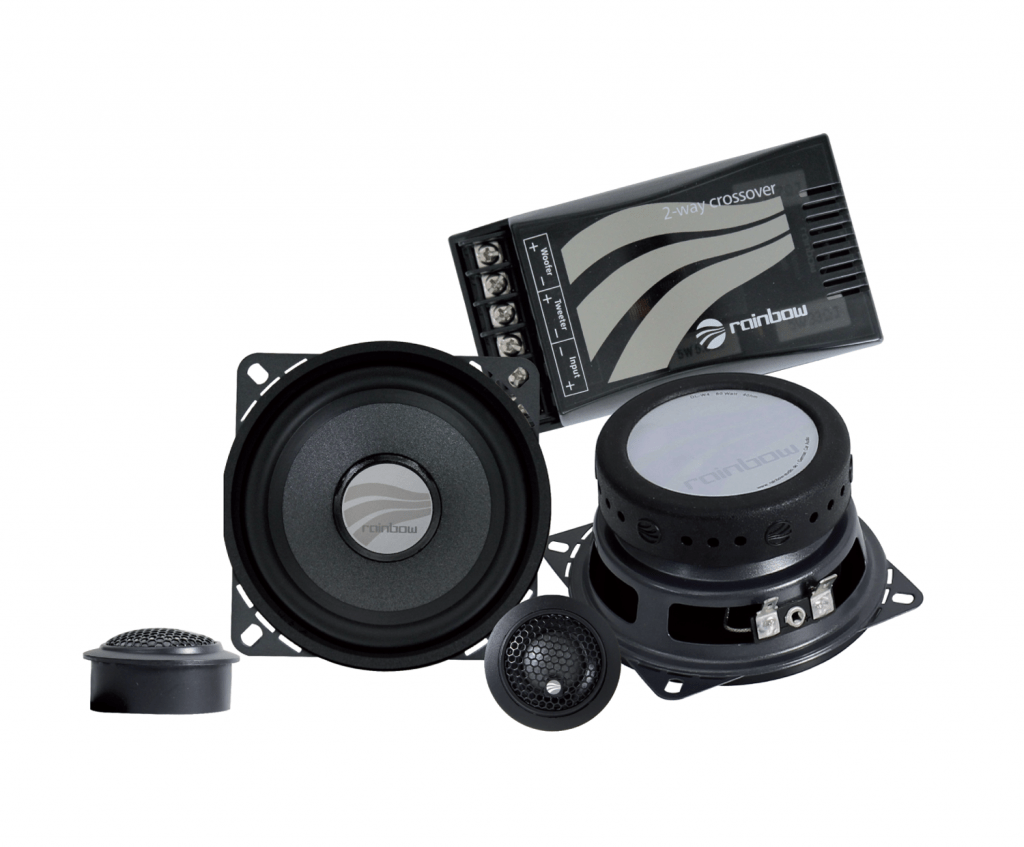

RAINBOW 2-WAY 6.5″ (4 Inch ) COMPONENT SET

Description

• • 20 mm Silk dome Tweeter
  • Minimum Amplifier Power: 30 Watts
  • Peak power 80 Watt
  • Power rating 60 Watt
  • Sensitivity 90 dB 1W/1m
  • Frequency response 75 – 21.000 Hz
  • Impedance 4 Ohm
  • Slope 2 x 12 dB/Okt.
  • Crossover frequency 4.200 Hz
  • Tweeter Attenuation 3x
  • Midrange Attenuation –
  • Variable Low Pass –
  • Thermal protection PTC
  • Name DL-W4
  • Mounting depth w/o / w. ring 51 / 51 mm
  • External Ø with edges 100 / 130 mm
  • External Ø with edges 124 mm
  • Installation Ø 89 mm
  • Fastening 114 mm
  • Name DL-W4
  • Mounting depth w/o / w. ring 51 / 51 mm
  • External Ø with edges 100 / 130 mm
  •External Ø with edges 124 mm

  The Tweeter:

  Dome tweeter made of natural fiber-silk blend
  Neoprene surround for controlled deflection
  Vented voice coil former with V2A strands
  Extremely powerful high-temperature neodymium magnet
  Ferrofluid voice coil cooling
  Extremely small installation diameter of 36 mm
  Built-in pot with angle adjustment and angular panel
  The Woofer:

  Folded, powder coated finish
  Screw Palladinierte
  Butyl rubber surround for controlled cone motion
  Coated natural fiber cone for natural
