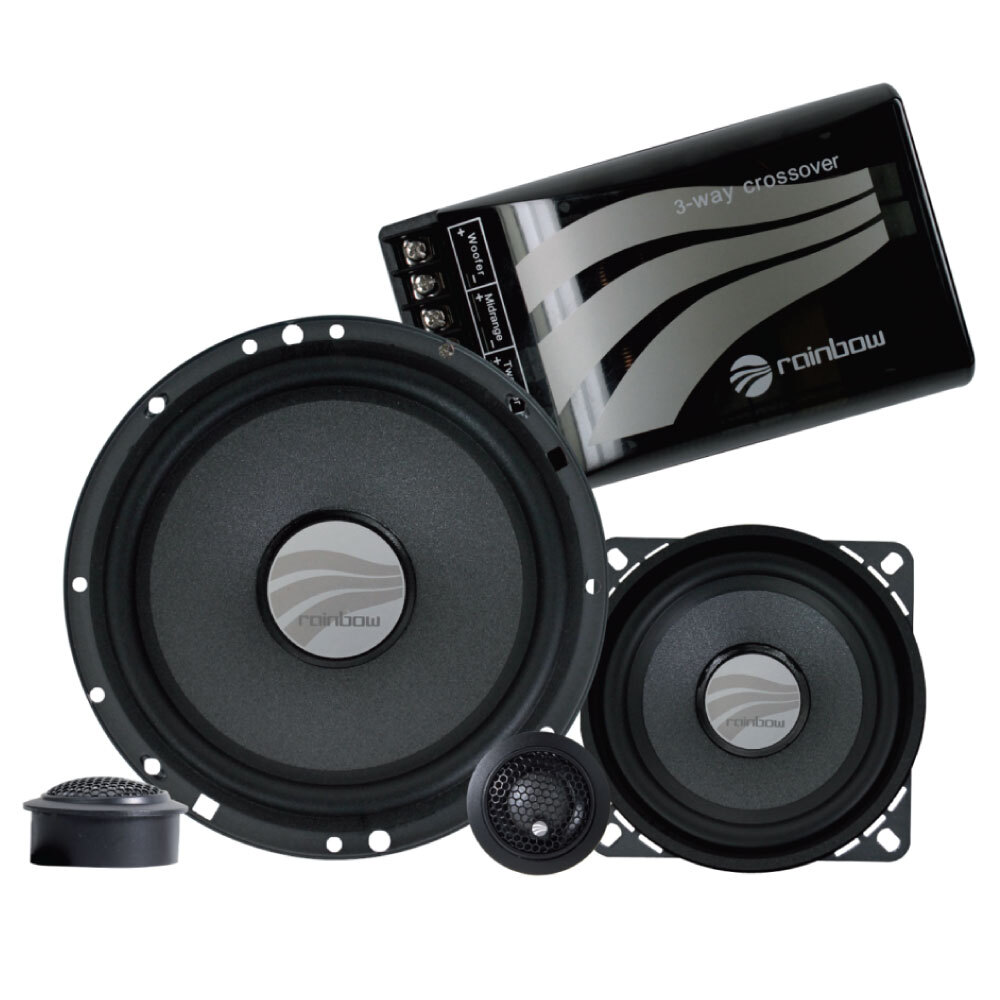

RAINBOW 3-WAY 6.5″ (165MM) COMPONENT SET

Description

• • Peak power 150 Watt
  • Power rating 100 Watt
  • Minimum amplifier power 30 Watt
  • Sensitivity 90 dB 1W/1m
  • Frequency response 50 – 21.000 Hz
  • Impedance 4 Ohm
  • Slope 3 x 12 dB/Okt.
  • Crossover frequency 450 / 4.200 Hz
  • Tweeter Attenuation 3x
  • Midrange Attenuation –
  • Variable Low Pass –
  •Thermal protection PTC
  • Name DL-W6
  • Mounting depth w/o / w. ring 63 / 61 mm
  • External Ø with edges 166 / 180 mm
  • External Ø with edges –
  • Installation Ø 142 mm
  • Fastening 156 mm
  • Name DL-W4
  • Mounting depth w/o / w. ring 51 / 51 mm
  • External Ø with edges 100 / 130 m
  • External Ø with edges 124 mm
  • Installation Ø 89 mm
  • Fastening 114 mm
  • Name DL-T20
  • Mounting depth w/o / w. ring 11 / 14² mm
  • External Ø with edges 36 /45² mm
  • Installation Ø 33 / 41² mm
