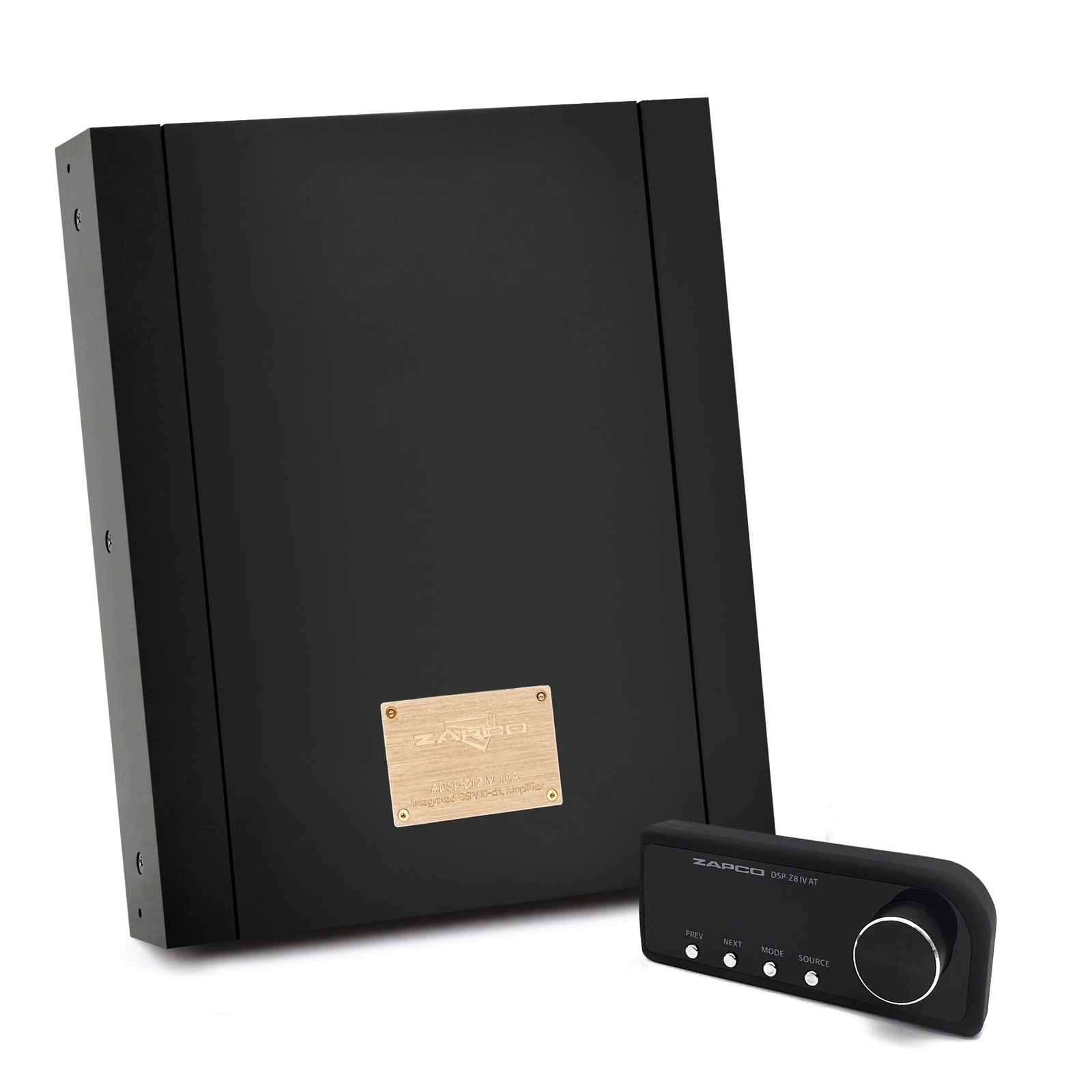

ZAPCO 12 Ch. DSP with 10 Ch. Amplifier

Description

ADSP-Z12 IV-10A   12 Ch. DSP with 10 Ch. Amplifier

Specifications

• DSP Processor: Cirrus Logic CS47048

• Power: 150 MHz/32 bit/192 KHz

• 12-Channels

• ADC: Cirrus Logic CS47048 32 bit/192 KHz

• ADC Dynamic Range/THD: 108 dB/-98 dB

• DAC: Cirrus Logic CS47048 32 bit/192 KHz

• DAC Dynamic Range/THD: 140 dB/-120 dB

• Low level (Pre)/Sensitivity: 1-5 VRMS

• High Level (Spk In)/Sens.: 2-20 V

• Optical Digital IN: 24 bit-192 KHz

• Coaxial Digital IN: 24 bit-192 KHz

• Freq. Response (-3dB): 10 Hz – 22.5 KHz

• S/N Input: 110 dBA (D) – 106 dBA (A)

• S/N Ratio Amp + DSP at max. power: 95 dBA

• THD+N Input: 0,002% (D) – 0,005% (A)

• THD+N Amplif. + DSP Analog Input:  0,07 %

• Crosstalk at 1 Khz only DSP: 90 dB

• Crosstalk Amplifier + DSP: 45 dB

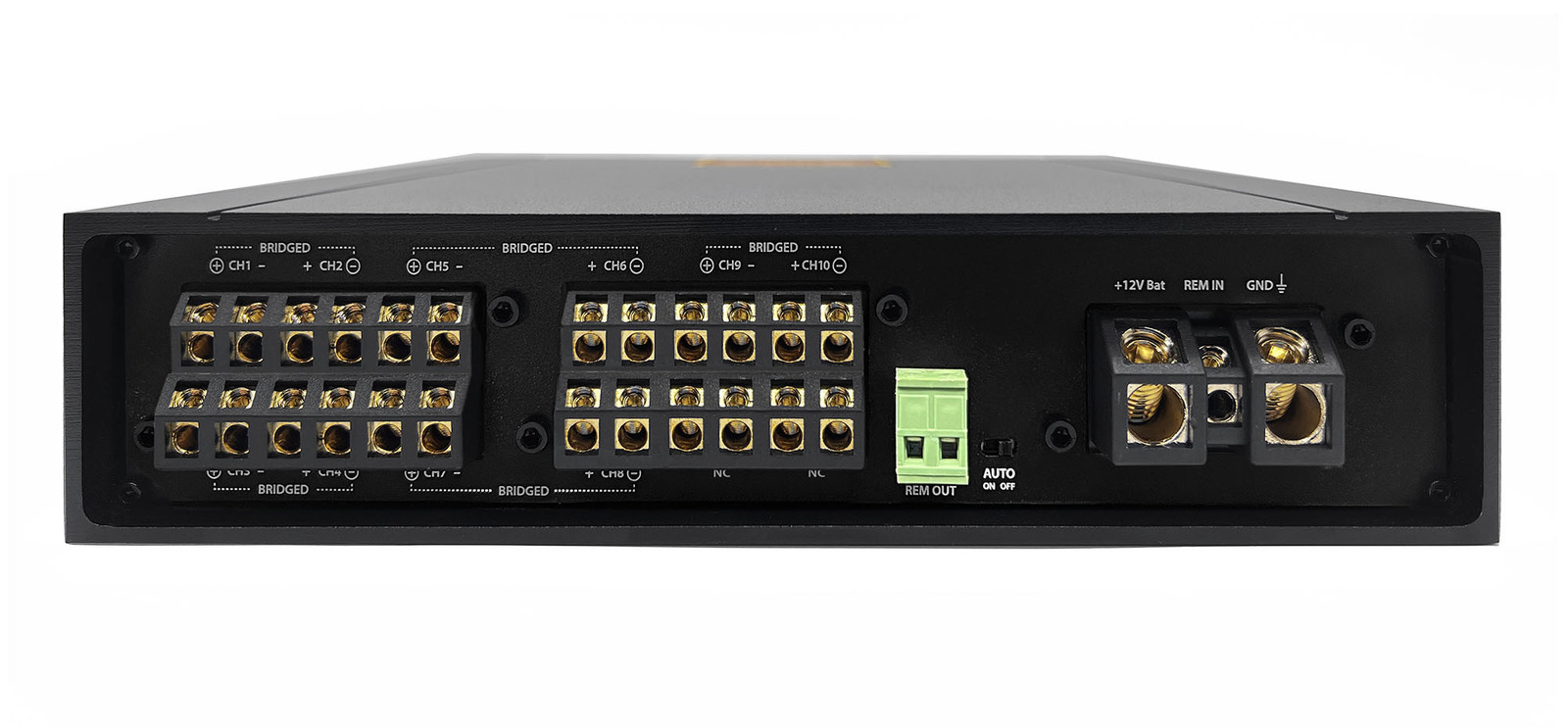

• Amp Power @ 4Ω: 10 x 80 watts

• Amp Power @ 2Ω: 10 x 120 watts

• Amp Power @ 4Ω Bridged: 5 x 240 watts

• F/R EQ: 1-6 ch Gr. & Par./31 poles

• Effect EQ: 7-8 ch Gr. & Par./11 poles

• Mute/Solo: Yes, each channel

• Time Align. (Range/Steps): 0/15 ms / 0.02 ms

• Max Delay (Cm/Steps): 515 cm / 0.68 cm

• Polarity: 0/180°

• Remote Control included

• HD-BT Streaming (with optional HD-BT)

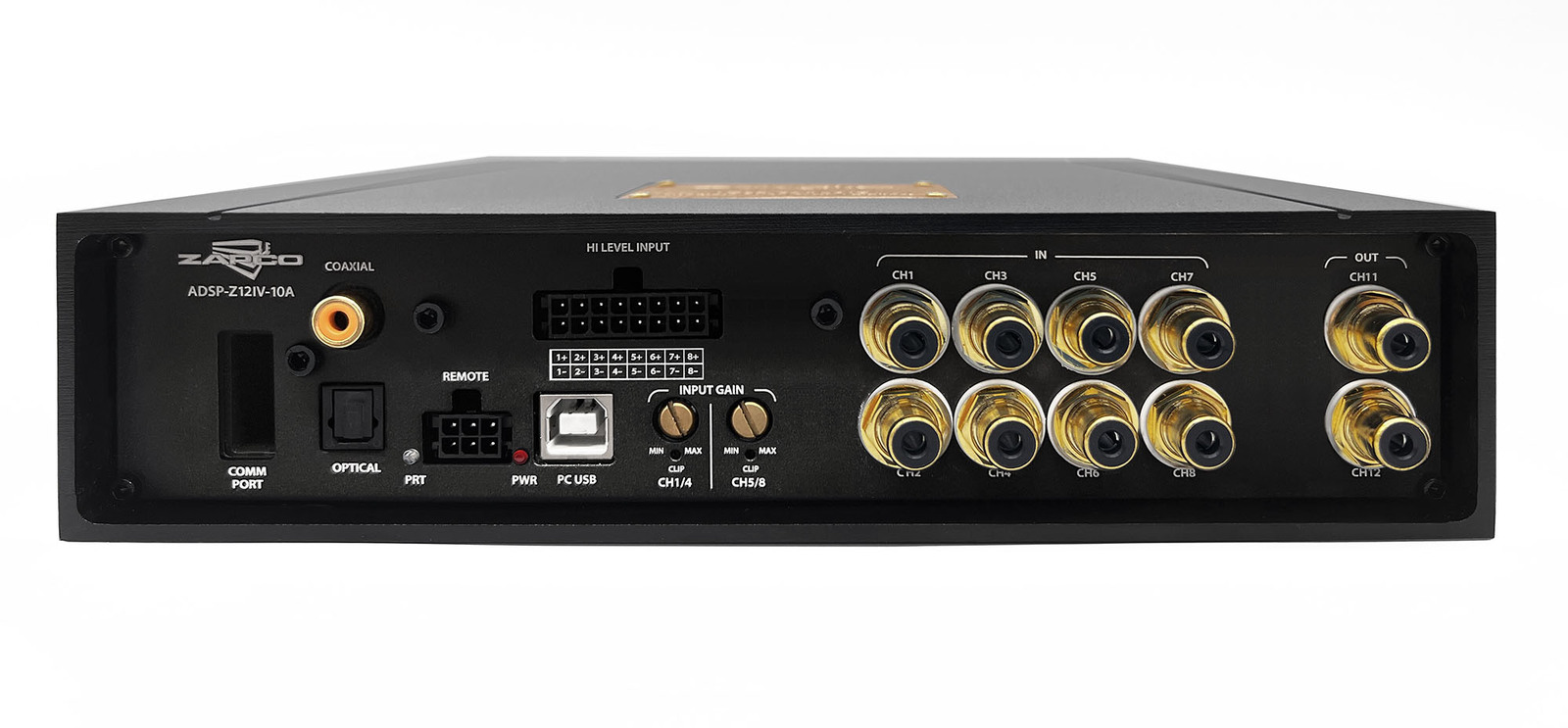

• PC/Display Connection: USB/6-pin Mini DIN

• Unit Dimensions: 213(W) x 291(L) x 50(H)
