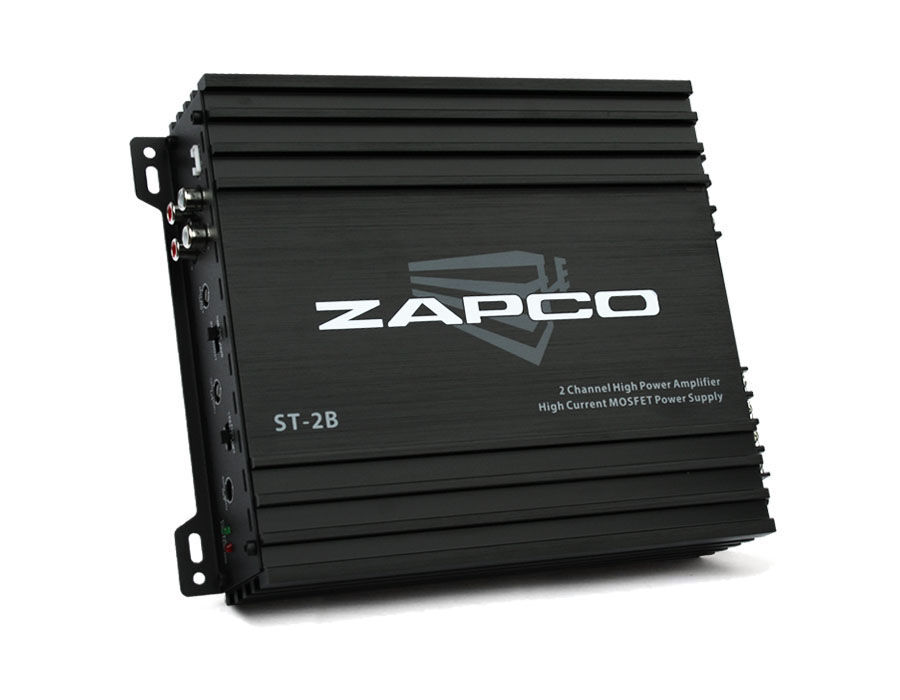

ZAPCO 2 Ch. Full RangeClass AB Amplifier

Description

• Features and Functions
  •2-Channel, Class-AB Full Range Amplidier
  •Stable into 4 ohms bridged or 2 ohms stereo load
  •MOSFET power supply
  •RCA and OEM speaker level input
  •Variable Inputs Gain Control
  •Variable FULL / LP / HP Electronic Crossover
  •Variable Bass Boost
  Specifications
  •Power @ 4Ω: 2 x 65 watts
  •Power @ 2Ω: 2 x 90 watts
  •Power @ 4Ω Bridged: 1 x 180 watts
  •THD @ Rated Power < 0.1%
  •Signal to Noise Ratio > 97dB
  •Channel separation > 45dB
  •Frequency Response 20Hz to 20,000Hz ±1dB
  •Input Sensitivity .25v to 5v
  •Dimensions in mm: 182(W) x 52(H) x 200(L) Overall: 182(W) x 52(H) x 230(L)
