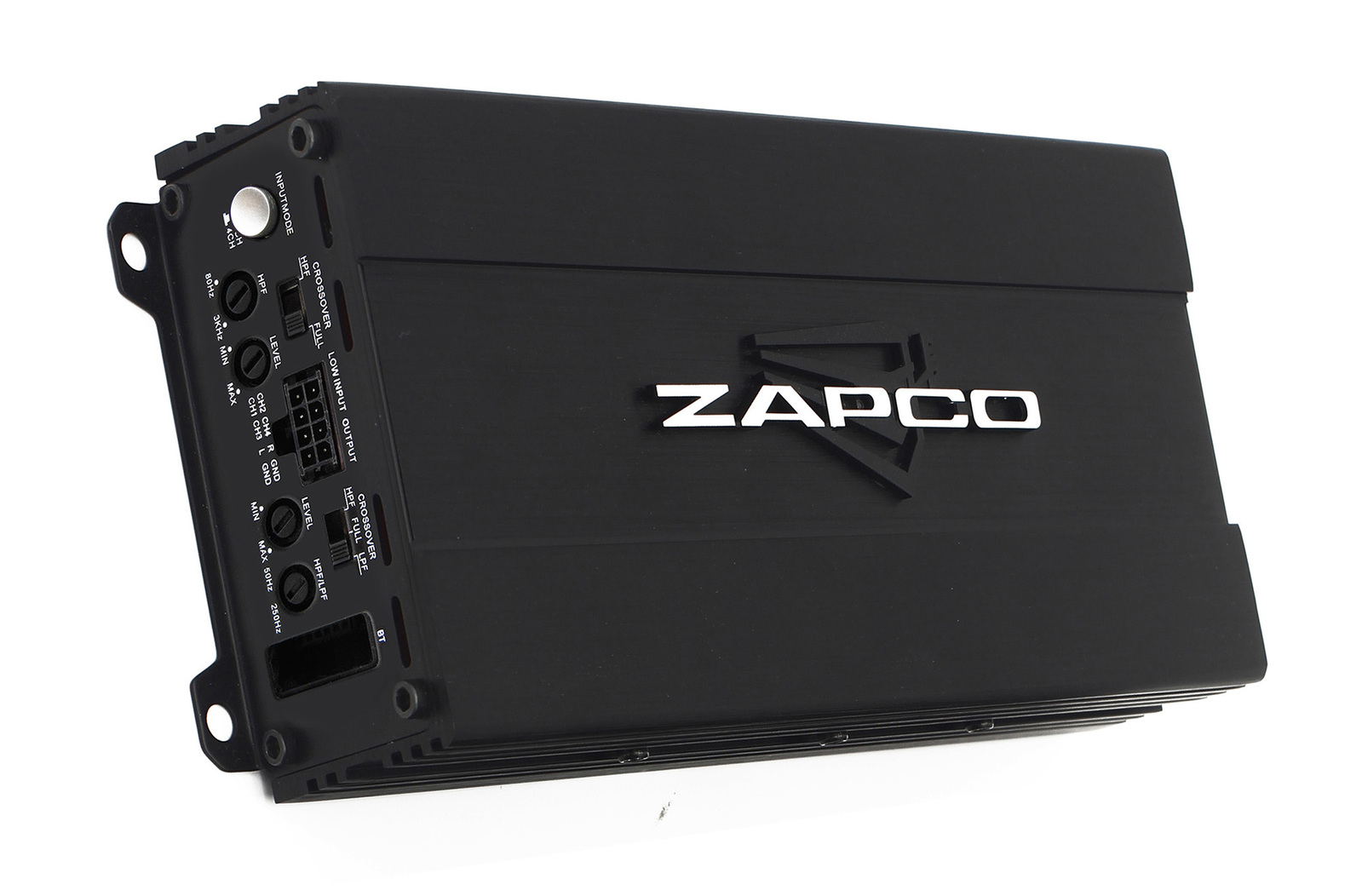

ZAPCO 4 Ch. Class D Mini Amplifier

Description

Features and Functions
•4-Channel, Full Range, Class D
•2-Ch./4-Ch. Input mode
•RCA and Speaker Level inputs
•Optional HD Bluetooth
•Variable input gain control
•Variable electronic crossover
•Auto-on with speaker level inputs
•Micro chassis
Specifications
•Power @ 4Ω: 4 x 95 watts
•THD @ Rated Power < 0.1%
•Power @ 2Ω: 4 x 120 watts
•Power Bridged @ 4Ω: 2 x 240W RMS
•Signal to Noise Ratio > 90dB
•Frequency Response 15Hz to 30KHz ±1dB
•Input Sensitivity .25v to 5v
•Dimensions in mm: 95(W) x 37(H) x 214(L) Overall: 95(W) x 37(H) x 236(L)
