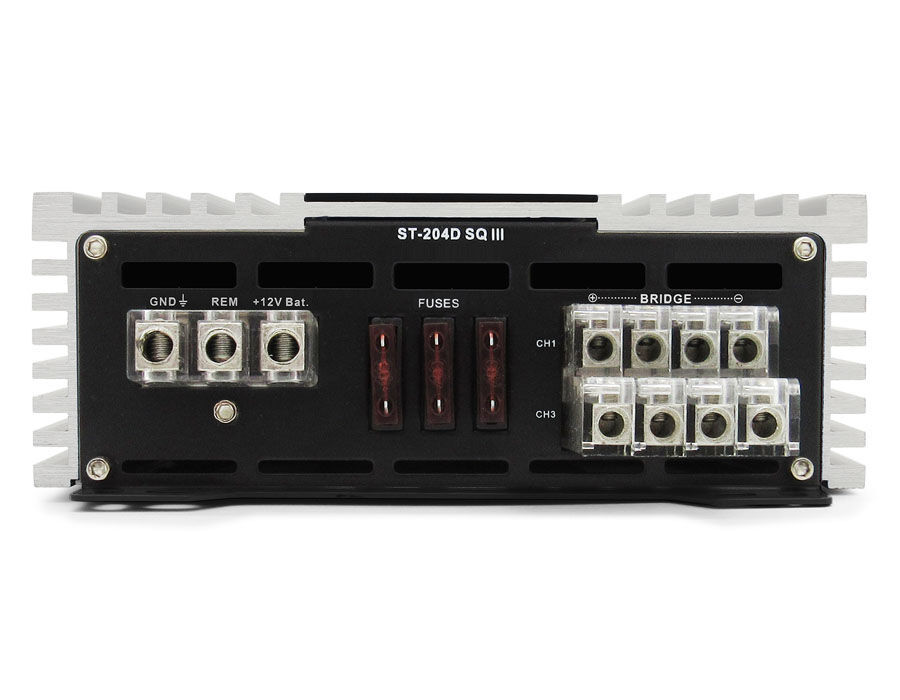

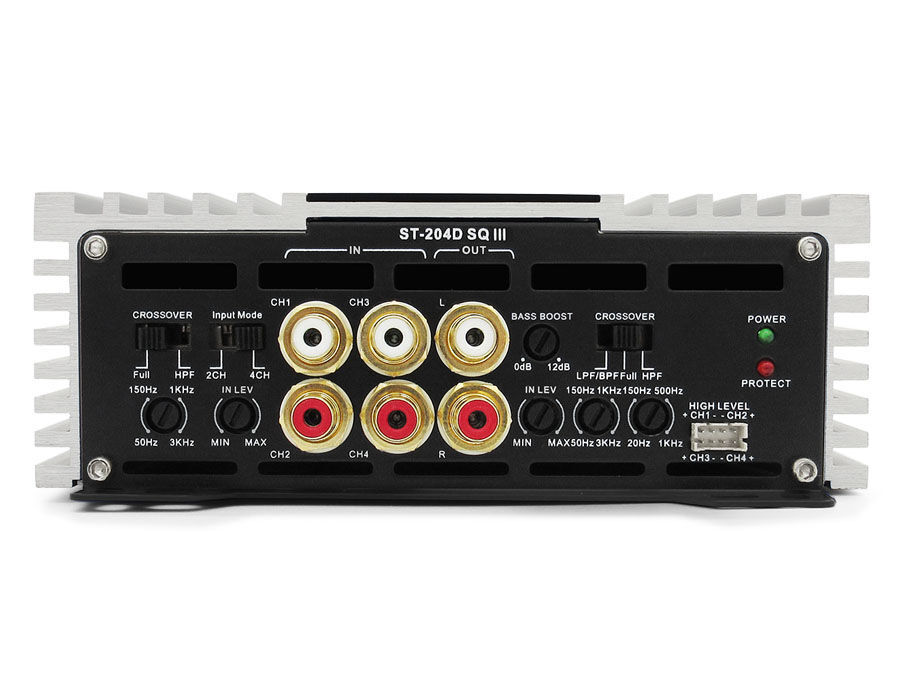

ZAPCO 4 Ch. Class D SQ Amplifier

Description

• Features and Functions
  • 4-Channel, Full Range, Class D
  • RCA and Speaker Level inputs
  • Variable input gain control
  • Variable electronic crossover
  • Variable bass boost control
  Specifications
  • Power @ 4Ω: 4 x 200 watts RMS
  • THD @ Rated Power < 0.5%THD
  • Power @ 2Ω: 4 x 290 watts RMS
  • Power Bridged @ 4Ω: 2 x 580 W RMS
  • Signal to Noise Ratio > 90dB
  • THD + Noise < 0.1%
  • Frequency Response 15Hz to 30KHz ±1dB
  • Input Sensitivity .25v to 5v
  • Dimensions in mm: 160(W) x 58(H) x 300(L) Overall: 160(W) x 58(H) x 325(L)
