ZAPCO 4 Ch. Competition Class AB Amp

Description

• Features and Functions
  •4-Channel, Class-AB Sound Quality Amplifier
  •Stable into 2 ohms bridged or 1 ohms stereo load
  •PWM MOSFET power supply
  •High end Op-amps and Capacitors
  •Variable FULL / LP / HP Electronic Crossover
  •0dB, 6dB, 12dB selectable bass boost
  •4-way protection circuitry

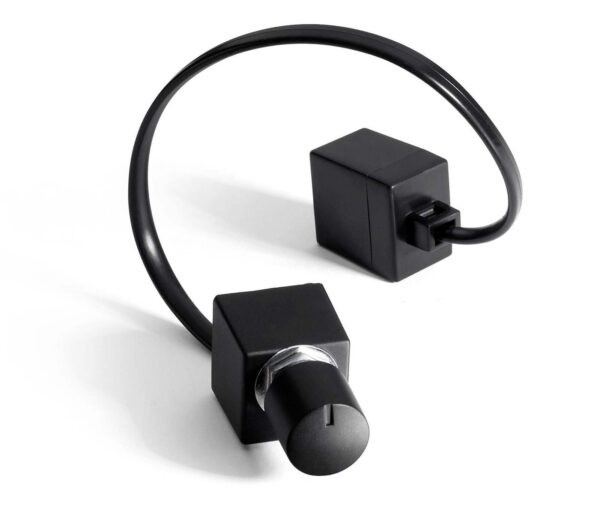

  •Wired remote control (optional)
  •Panel mount RCA connectors
  Specifications
  •Power @ 4Ω: 4 x 200 watts
  •Power @ 2Ω: 4x 330 watts
  •Power @ 1Ω: 4 x 500 watts
  •Bridged @ 4Ω: 2 x 500 Watts
  •THD @ Rated Power < 0.05%
  •Signal to Noise Ratio > 90dB
  •Channel separation > 60dB
  •Frequency Response 10Hz to 30,000Hz ±1dB
  •Input Sensitivity .25v to 8v
  •Dimensions in mm: 190(W) x 62(H) x 652(L) Overall: 190(W) x 62(H) x 690(L)
