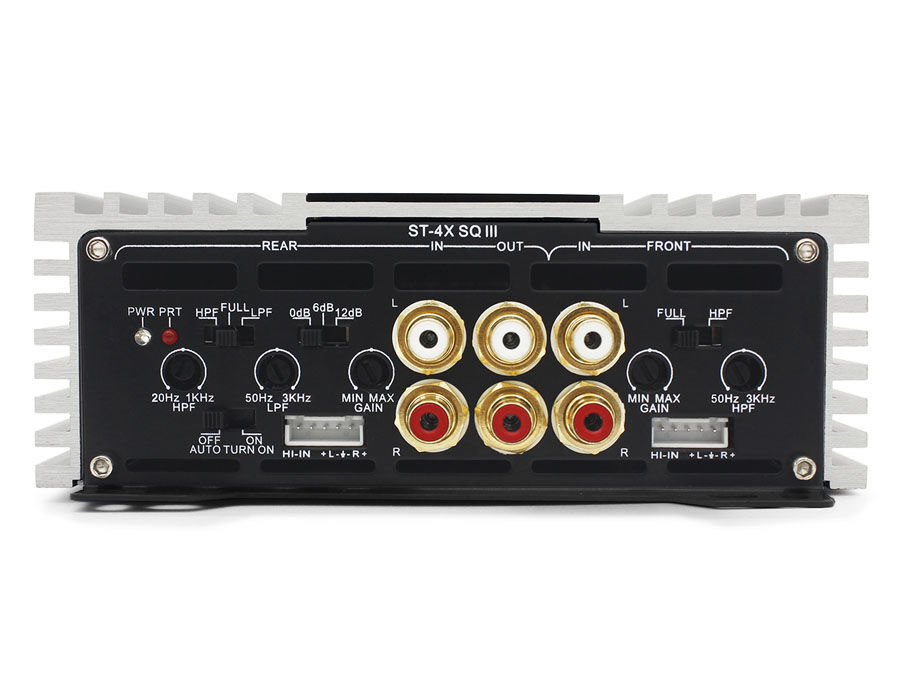

ZAPCO 4 Ch. Sound Q Class AB Amplifier

Description

• Features and Functions
  •4-Channel, Full Range, Class A/B
  •SQ Upgrades: Op-amps, Caps, Etc.
  •Tiffany style Panel Mount RCA’s
  •RCA and Speaker Level Inputs
  •Variable input gain control
  •Variable electronic crossover
  •Auto-on with Speaker level inputs
  •New aluminum chassis
  Specifications
  •Power @ 4Ω: 4 x 70 watts
  •THD @ Rated Power < 0.1% THD
  •Power @ 2Ω: 4 x 95 watts
  •Power Bridged @ 4Ω: 2 x 190W RMS
  •Signal to Noise Ratio > 95dB
  •Channel Separation >60dB
  •Frequency Response 15Hz to 30KHz ±1dB
  •Input Sensitivity .25v to 5v
  •Dimensions in mm: 160(W) x 58(H) x 300(L) Overall: 160(W) x 58(H) x 325(L)
