ZAPCO 8 Ch. DSP with Auto Tune

Description

• •DSP Processor: Cirrus Logic CS47048
  •Power: 150 MHz/32 bit/192 KHz
  •8-Channels IN, 8-Channels OUT
  •ADC: Cirrus Logic CS47048 32 bit/192 KHz
  •ADC Dynamic Range/THD: 108 dB/-98 dB
  •DAC: Cirrus Logic CS8422 24 bit/192 KHz
  •DAC Dynamic Range/THD: 140 dB/-120 dB
  •Low level (Pre)/Sensitivity: 1-5 VRMS
  •High Level (Spk In)/Sens.: 2-20 V
  •Optical Digital IN: 24 bit-192 KHz
  •Coaxial Digital IN: 24 bit-192 KHz
  •Freq. Response (-3dB): 10 Hz – 22.5 KHz
  •S/N Ratio only DSP Digital Input: 110 dBA
  •S/N Ratio only DSP Analog Input: 106 dBA
  •THD+N only DSP Digital Input: 0,002 %
  •THD+N only DSP Analog Input: 0,005 %
  •Crosstalk at 1 Khz only DSP: 90 dB
  •F/R EQ: 1-6 ch Gr. & Par./31 poles
  •Effect EQ: 7-8 ch Gr. & Par./11 poles
  •Mute/Solo: Yes, each channel
  •Time Align. (Range/Steps): 0/15 ms / 0.02 ms
  •Max Delay (Cm/Steps): 515 cm / 0.68 cm
  •Polarity: 0/180°

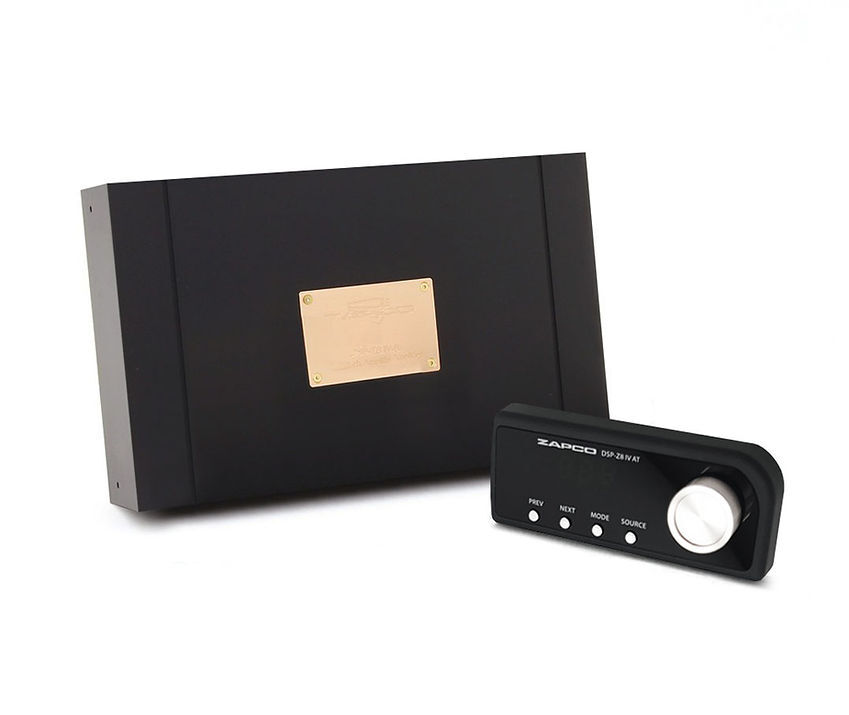

  •Remote Control included
  •HD-BT Streaming (with optional HD-BT)
  •PC/Display Connection: USB/6-pin Mini DIN
  •Unit Dimensions: 213(W) x 113(L) x 50(H)
